JL Audio A60 Marine AM/FM/Bluetooth Head Unit
SKU: N/A
$0.00
🚚 FREE SHIPPING INCLUDED 🚚
contact us for pricing
JL Audio A60 Marine AM/FM/Bluetooth Head Unit
SKU
N/A
Product type
Audio/Video
List price
Sale price
$0.00
Date Created
02 / 09 / 2026
Product details

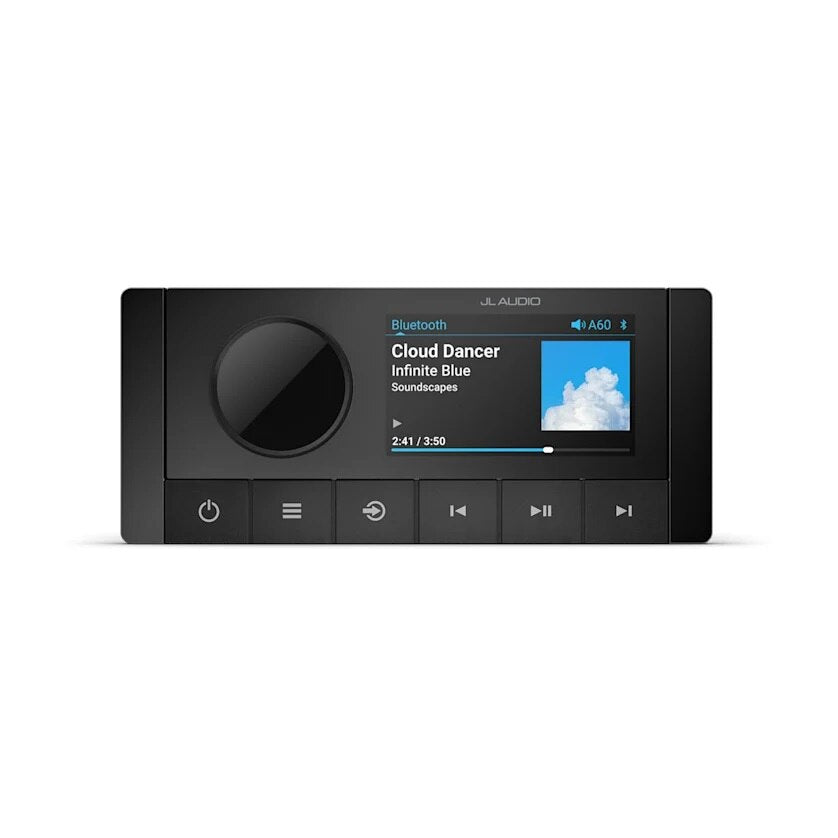

JL Audio A60 Marine Head Unit
Model: 010-02983-00
- BLUETOOTH® 6.1 LE AUDIO STREAMING
- SLEEK, HIGH-RESOLUTION 2.95-INCH COLOR DISPLAY
- DIGITAL SIGNAL PROCESSING (DSP) OPTIMIZES AUDIO AND PROTECTS SPEAKERS AND SUBWOOFERS
- MULTI-ZONE™ TECHNOLOGY IN 4 ZONES
- NMEA 2000® NETWORK FOR INTEGRATION WITH YOUR COMPATIBLE CHARTPLOTTER
- MULTIPLE OPTIONS FOR WIRELESS CONTROL
Cruise to the soundtrack of the A60 advanced marine head unit — the high-quality sound system with a sleek, aesthetic design to complement your helm.
Built-in DSP technology optimizes the audio signal sent to your system and manages the power delivered to your speakers and subwoofers for a superior listening experience.
Enjoy a clear view of your audio information on the 2.95-inch color screen. It’s fog-resistant and daylight-readable to stay visible, no matter the weather conditions.
This head unit natively supports DAB technology, providing a clear and reliable alternative to traditional AM/FM radio in regions where DAB is available.
Wireless software updates via Bluetooth LE technology are available from compatible smart devices with the free Garmin Audio™ app.
Easily control your audio from anywhere on your boat with your compatible Garmin smartwatch or the Garmin Audio smartphone app.
This marine head unit system is compatible with an NMEA 2000 network, ensuring premium audio control via Garmin MFDs and the JL Audio NRX-300 wired remote (sold separately).
Enjoy advanced audio streaming from smart devices through Bluetooth 6.1 LE technology (supports LC3 codec).
Control your audio in up to 4 separate zones. Supports 4 speaker and 4 subwoofer pre-amp outputs for connection to
compatible amplifiers.
With the free Garmin Audio app, you can easily set up DSP and enjoy high-quality audio customized for your listening environment.
This head unit is rated IPX6 and IPX7 for water ingress protection and has been tested to a high level of protection against salt fog, temperature, vibration and UV exposure.
Specifications
| General | |
| Warranty | 3 years |
| Physical dimensions (Height) | 2.68" (68 mm) |
| Physical dimensions (Width) | 6.18" (157 mm) |
| Physical dimensions (Depth) | 4.70" (119 mm) |
| Weight | 1.04 lbs (470 g) |
| Control surface dust/water rating (when properly installed) | IPX6 and IPX7 |
| Rear dust/water rating (when properly installed) | IPX6 and IPX7 |
| Operating temperature range | 32° F to 122° F (0° C to 50° C) |
| Current draw (max) | 15 A |
| Audio | |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 17 W x 4 (CTA-2006) |
| Maximum dynamic power (14.4 V input @ 4 Ω < 10% THD) | 22 W x 4 (CTA-2006) |
| Total maximum dynamic power | 89 W (CTA-2006) |
| Electrical Features | |
| Power Input | 10.8-16 VDC |
| Compass-safe distance | 17.7" (45 cm) |
| Stereo Features | |
| Display size | 2.95" (74 mm) |
| Display type | color LCD |
| Display resolution | 640 x 360 pixels |
| Optically bonded display | yes |
| Built-in amplifier | Class D (4 Ω) |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Garmin Audio app) |
| Garmin audio control | yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Bluetooth® wireless technology | yes (Bluetooth® 6.1) |
| DAB+ Built-in | Yes |
| Software updates | Over-the-air updates via Garmin Audio app/USB |
| Sources | |
| Supported sources | AM, FM, Bluetooth, USB, USB audio, iPhone, iPod, AUX x1 |
| Supported audio formats (USB) | MP3, M4A, AAC, FLAC, WAV |
| Networking & Connections | |
| Auxiliary inputs (RCA) | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 (USB-C) |
| AM/FM ports (Motorola antenna connector) | 1 |
| DAB+ ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 4 (1 mono output per zone) |
| Wireless frequencies/protocols | Bluetooth® Classic: 2.4 GHz @ +10 dBm nominal Bluetooth Low Energy: 2.4 GHz @ +10 dBm nominal |
| Bluetooth® wireless range | up to 30 ft |
Whats in the Box:
- JL Audio A60
- Power/speaker harness
- Zone 1 and zone 2 harness
- Zone 3 and zone 4 harness
- Mounting hardware
- Documentation
