Raymarine CAM400 Marine Day/Night IP Camera White

Raymarine CAM400 Marine Day/Night IP Camera White
Raymarine CAM400 Marine Day/Night IP Camera White
SKU: N/A
$0.00
Save

🚚 FREE SHIPPING INCLUDED 🚚

Low in stock
Pre-order
Discontinued
In stock
Out of stock
Notify me When Available
You will receive an email when the product is available.

Raymarine CAM400 Marine Day/Night IP Camera White

SKU N/A
Product type Audio/Video
List price
Sale price
$0.00
Date Created 02 / 10 / 2026
Raymarine CAM400 Marine Day/Night IP Camera White

Product details

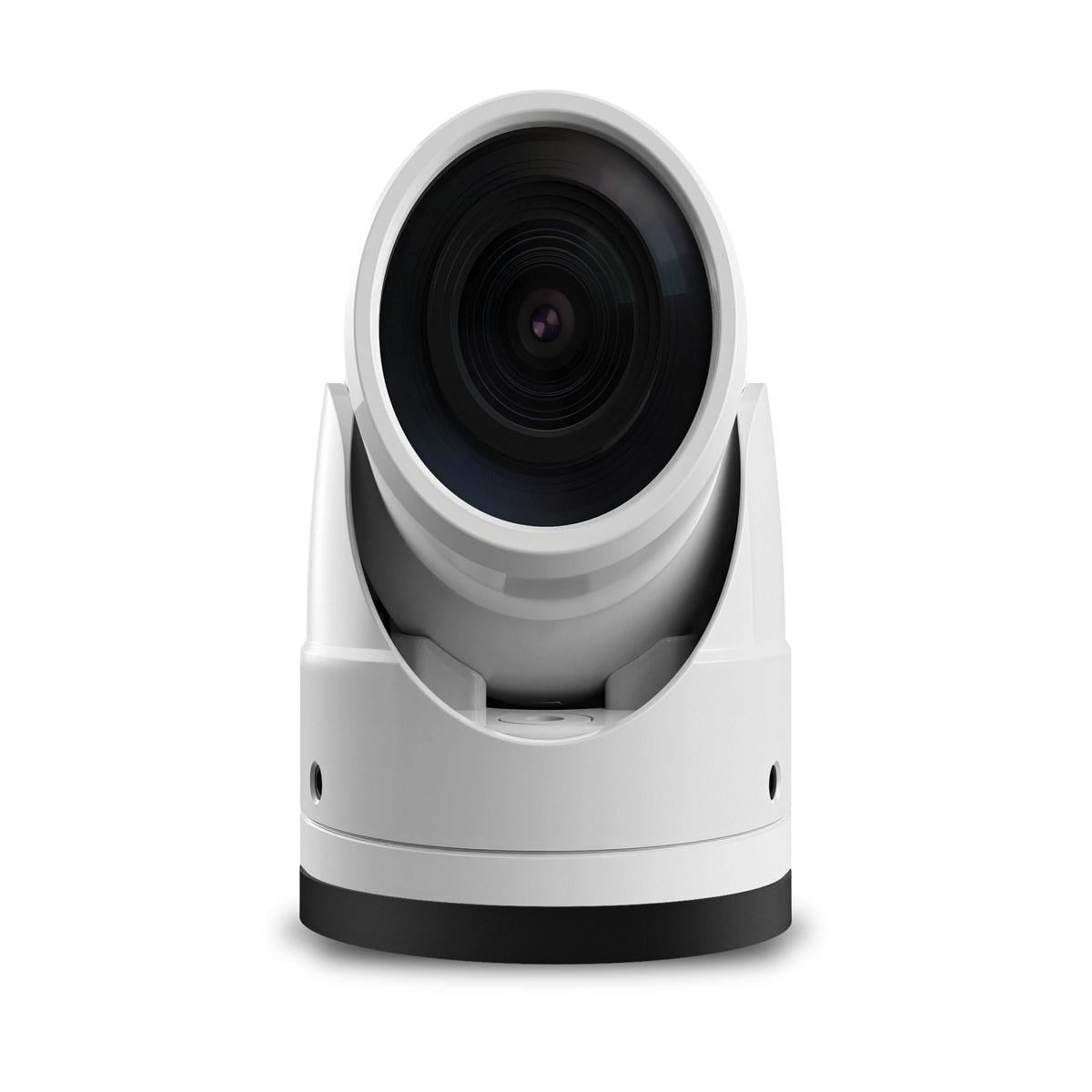

Raymarine CAM400 Day/Night IP Camera - White
Model: E70716
  • High-definition video for enhanced onboard awareness and monitoring
  • Integrated infrared illumination for low-light and nighttime visibility up to 33 ft (10 m)
  • Ball-up or ball-down installation with simple, secure angle adjustment
  • Gloss marine white finish
  • Rugged IPX6/IPX7 marine housing
  • Flexible power options - Power over Ethernet (PoE) or direct 12 V DC

The CAM400 is a compact day/night IP camera designed for Raymarine Axiom chartplotters. It delivers wide-angle, high-definition video in bright sun, at dusk and in low light, turning your Axiom display into an onboard video system for navigation, docking, safety and monitoring around the vessel. Built on an IP networking platform, it integrates with LightHouse 4 Axiom and LightHouse 5 Axiom 2 systems.

Paired with any Axiom 2 chartplotter running LightHouse 5, CAM400 can display configurable on-screen distance guide lines. Line spacing and angle adjust to suit your boat and camera installation, for backing into slips, approaching docks and maneuvering in tight quarters.

Combine CAM400 with an AR200 sensor and a compatible Axiom chartplotter for ClearCruise® Augmented Reality navigation, with AIS targets, waypoints, navigation aids and chart objects overlaid directly on the live camera image.

A compact, low-profile design with versatile mounting and support for Power over Ethernet or direct 12 V DC power suits both new installations and refits, above or below deck.

Specifications
Video
Day / Night True day/night operation with automatic IR cut filter
Automatic Gain Control Automatic image optimization in changing light conditions
Scanning System Progressive scan
Mirror Horizontal and vertical image flip
Video Processing Advanced image processing with configurable WDR, noise reduction and image enhancement
Bit Rate Control Constant Bit Rate (CBR) / Variable Bit Rate (VBR)
Compression H.264, MJPEG
Illumination Integrated 850 nm infrared emitter, range up to 10 m (33 ft)
Frame Rate Up to 30 fps
ONVIF ONVIF Profile S compliant
Sensor / DSP Color CMOS image sensor
Field of View Wide-angle lens (129.4° HFOV)
Power
Power over Ethernet PoE Class 2 device (6.49 W max) (IEEE 802.3af)
Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 to 15.6 V DC
Power Consumption 2.1 W nominal @ 12 V DC / 5 W maximum (LEDs on)
Current Less than 420 mA (maximum) @ 12 V DC
Inline Fuse Rating 2 A
Environmental
Relative Humidity Up to 95% at 60°C (140°F)
Waterproof Rating IPX7
Storage Temperature -30°C to +70°C (-22°F to 158°F)
Operating Temperature -20°C to +60°C (-4°F to 140°F)
Physical
Dimensions Height 80.80 mm, Width 64.5 mm, Depth 70.48 mm including lens (3.18 in x 2.54 in x 2.77 in) - maximum dimensions including base, excluding cable
Weight 0.420 kg (0.926 lbs)
Conformance
Product Markings UKCA, RoHS, CE, Australian RCM C-Tick
Standards RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002

Whats in the Box:
  • CAM400 - with integrated 1.4 m (4.8 ft) connection cable featuring a PoE (RayNet) connector, factory reset switch and direct connection
  • Camera mount
  • Documentation
  • Camera base
  • Mounting gasket (pre-fitted to camera base)
  • Hex wrench (Allen key)
  • Bushings (x3)
  • Silicone rings (x3)
  • Flat washers (x3)
  • Countersunk screws (x3)
  • M4 x 30 mm self-tapping mounting screws (x3)

Product details

Raymarine CAM400 Day/Night IP Camera - White
Model: E70716
  • High-definition video for enhanced onboard awareness and monitoring
  • Integrated infrared illumination for low-light and nighttime visibility up to 33 ft (10 m)
  • Ball-up or ball-down installation with simple, secure angle adjustment
  • Gloss marine white finish
  • Rugged IPX6/IPX7 marine housing
  • Flexible power options - Power over Ethernet (PoE) or direct 12 V DC

The CAM400 is a compact day/night IP camera designed for Raymarine Axiom chartplotters. It delivers wide-angle, high-definition video in bright sun, at dusk and in low light, turning your Axiom display into an onboard video system for navigation, docking, safety and monitoring around the vessel. Built on an IP networking platform, it integrates with LightHouse 4 Axiom and LightHouse 5 Axiom 2 systems.

Paired with any Axiom 2 chartplotter running LightHouse 5, CAM400 can display configurable on-screen distance guide lines. Line spacing and angle adjust to suit your boat and camera installation, for backing into slips, approaching docks and maneuvering in tight quarters.

Combine CAM400 with an AR200 sensor and a compatible Axiom chartplotter for ClearCruise® Augmented Reality navigation, with AIS targets, waypoints, navigation aids and chart objects overlaid directly on the live camera image.

A compact, low-profile design with versatile mounting and support for Power over Ethernet or direct 12 V DC power suits both new installations and refits, above or below deck.

Specifications
Video
Day / Night True day/night operation with automatic IR cut filter
Automatic Gain Control Automatic image optimization in changing light conditions
Scanning System Progressive scan
Mirror Horizontal and vertical image flip
Video Processing Advanced image processing with configurable WDR, noise reduction and image enhancement
Bit Rate Control Constant Bit Rate (CBR) / Variable Bit Rate (VBR)
Compression H.264, MJPEG
Illumination Integrated 850 nm infrared emitter, range up to 10 m (33 ft)
Frame Rate Up to 30 fps
ONVIF ONVIF Profile S compliant
Sensor / DSP Color CMOS image sensor
Field of View Wide-angle lens (129.4° HFOV)
Power
Power over Ethernet PoE Class 2 device (6.49 W max) (IEEE 802.3af)
Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 to 15.6 V DC
Power Consumption 2.1 W nominal @ 12 V DC / 5 W maximum (LEDs on)
Current Less than 420 mA (maximum) @ 12 V DC
Inline Fuse Rating 2 A
Environmental
Relative Humidity Up to 95% at 60°C (140°F)
Waterproof Rating IPX7
Storage Temperature -30°C to +70°C (-22°F to 158°F)
Operating Temperature -20°C to +60°C (-4°F to 140°F)
Physical
Dimensions Height 80.80 mm, Width 64.5 mm, Depth 70.48 mm including lens (3.18 in x 2.54 in x 2.77 in) - maximum dimensions including base, excluding cable
Weight 0.420 kg (0.926 lbs)
Conformance
Product Markings UKCA, RoHS, CE, Australian RCM C-Tick
Standards RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002

Whats in the Box:
  • CAM400 - with integrated 1.4 m (4.8 ft) connection cable featuring a PoE (RayNet) connector, factory reset switch and direct connection
  • Camera mount
  • Documentation
  • Camera base
  • Mounting gasket (pre-fitted to camera base)
  • Hex wrench (Allen key)
  • Bushings (x3)
  • Silicone rings (x3)
  • Flat washers (x3)
  • Countersunk screws (x3)
  • M4 x 30 mm self-tapping mounting screws (x3)
